Intelligent Motor Protection Relay Apply in Bangladesh Cement Factory

摘要：電動機設備是水泥企業中應用較廣泛的動力裝置，而水泥生產企業屬于能耗高、污染大又需要設備連續不間斷工作的行業，電動機作為水泥行業設備的動力來源，其安全、穩定可靠的運轉對水泥行業的平穩生產起著至關重要的作用。
Abstract: Motor equipment is widely used in cement enterprises in power plant, and cement production enterprise belong to high energy consumption, pollution, large and continuous uninterrupted work need equipment industry, the electric motor as the power source of the cement industry equipment, the safe, stable and reliable operation, steady production of cement industry plays a vital role.
1.項目概述 Project Description
隨著現代化水泥工業生產規模增加，生產設備也越來越大型化，因此所需用的拖動電動機的功率也越來越大。水泥廠生產工藝流程較復雜，可以總結水泥生產過程為生料制備（一磨）、熟料煅燒（一燒）、水泥粉磨（二磨）。因此，低壓電動機作為水泥生產過程中較常用的機組，數量多、種類復雜，隨著科學技術的不斷進步和工藝控制過程的不斷完善，尤其是自動化生產要求，迫切需要開發和完善電動機的控制和保護設備，實現對整個自動化生產過程和大型機械的遙控、遙測、遙調、故障診斷以及集中控制等功能
孟加拉水泥廠客戶找到我們， 購買了ARD2F系列的 智能型電動機保護器。
With the increase of modern cement industry production scale, production equipment is also more and more large, so the power of the drag motor is also more and more large.The production process of cement plant is complicated. The cement production process can be summarized as raw material preparation (first grinding), clinker calcination (first burning) and cement grinding (second grinding).Therefore, the low-voltage motor, as the most commonly used unit in cement production process, has a large number and a complex type. With the continuous progress of science and technology and the continuous improvement of process control process, especially the requirements of automatic production, there is an urgent need to develop and improve the control and protection equipment of the motor.Realize the whole automatic production process and large machinery remote control, remote measurement, remote adjustment, fault diagnosis and centralized control and other functions
The customer of Bangladesh Cement factory came to us and bought the ARD2F series intelligent motor protector
2.產品介紹 Product introduction
ARD2F 系列智能電動機保護器（以下簡稱保護器）能對電動機運行過程中 出現的多種故障情況進行保護，并設有 SOE 故障事件記錄功能，方便現場維護 人員查找故障原因。本保護器具有 RS485 遠程通訊接口， DC4～20mA 模擬量 輸出，方便與 PLC、PC 等控制機組成網絡系統。實現電動機運行的遠程監控。
ARD2F series intelligent motor protector (hereinafter referred to as protector) can protect a variety of fault situations in the process of motor operation, and is equipped with SOE fault event recording function, which is convenient for field maintenance personnel to find fault causes.This protector has RS485 remote communication interface, DC4 ~ 20mA analog output, convenient with PLC, PC and other control units into a network system.Realize the remote monitoring of motor operation.

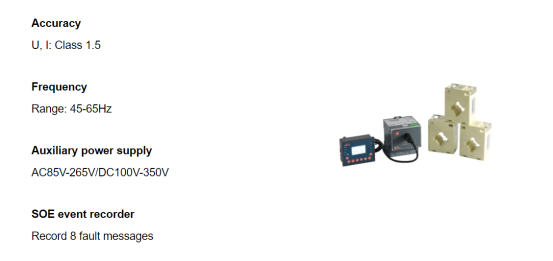

3.功能Function

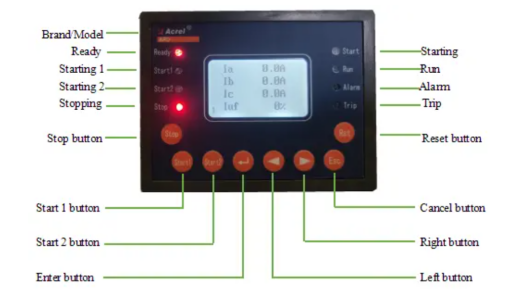

4.面板顯示Front Panel

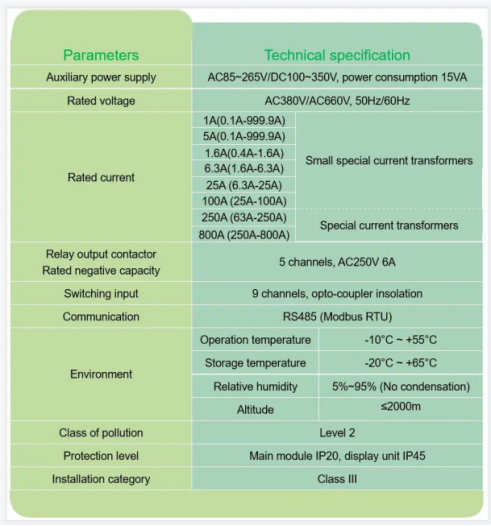

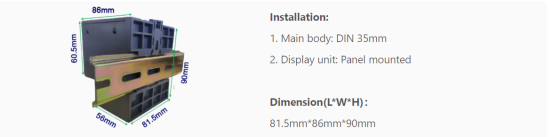

5.技術參數Technical Features

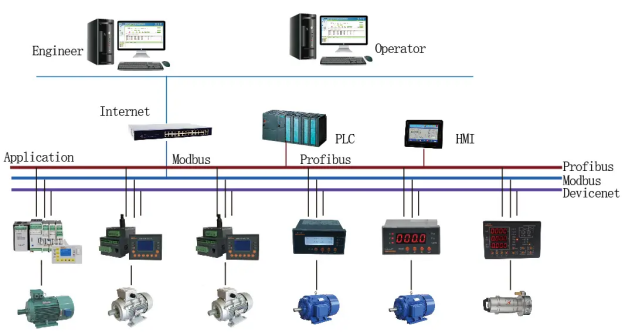

6.組網拓撲圖 Network topology

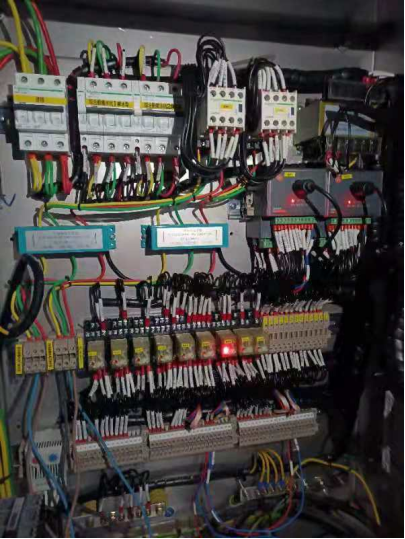

7.現場圖片Photo on-site

8. 結束語Conclusion
隨著電子技術及通訊技術的不斷發展。電動機保護器也在朝著多元化方向發展，電動機保護器在水泥企業的應用也越來越廣泛，合理選擇電機設備的保護功能和保護方式，可提高設備運行的可靠性，能夠預防并杜絕電機燒毀，同時減少了因非計劃停車而造成的損失，降低了企業的生產成本。
With the development of electronic technology and communication technology.Motor protector is in development in the direction of diversification, motor protector application is becoming more and more widely in cement enterprise, the rational selection of protection and the protection of electrical equipment, can improve the reliability of equipment operation, can prevent and stop motor burned, while reducing the losses caused by unplanned parking, reduce the production cost of enterprises.
